CL1000 CoaguDx System

for Point of Care

iPhone

User-friendly operation:

  • One-drop testing: Fresh / sodium citrated whole blood
  • Rapid key parameters: PT, INR, APTT, ACT

Portable design:

  • Handheld lab: Purpose-built for POCT
  • Full-scenario use: OR / bedside / clinic / home

Trustworthy detection:

  • Electrochemical method: High sensitivity & specificity
  • QC monitoring + calibration

Cost-Efficient:

  • One ACT-strip works in both low and high concentrations of heparin
  • Multi-parameter strip: Single test, multiple results (PT/APTT)

Test Menu

Performance PT INR APTT
Measurable Range 10-14 s 0.7-1.4 22-35 s
Detection Range 5.5-96 s 0.5-8 10-180 s

Docking Station : CoaguDx Station

iPhone

Instrument Specification

Display:3.5 inch Test Strip Specification: 6,12,24,48 tests/box
Barcide Scanner:QR code Scanner Shelf Life:12 months
Dimensions:145mm*75mm*30mm Transportation Temperature: -10℃-40℃
Net Weight:195g Type C port charging
Operating Temperature:10-32℃ Data Transfer:Bluebooth

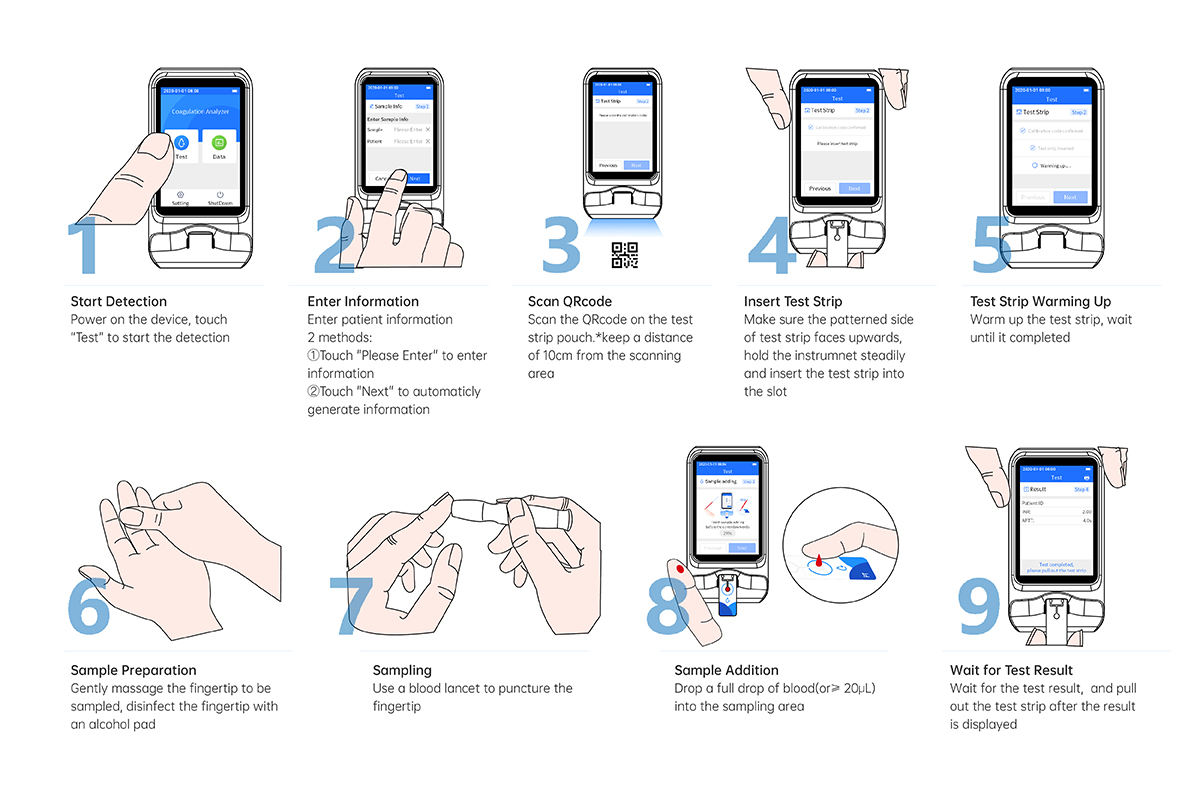

Quick Guide
