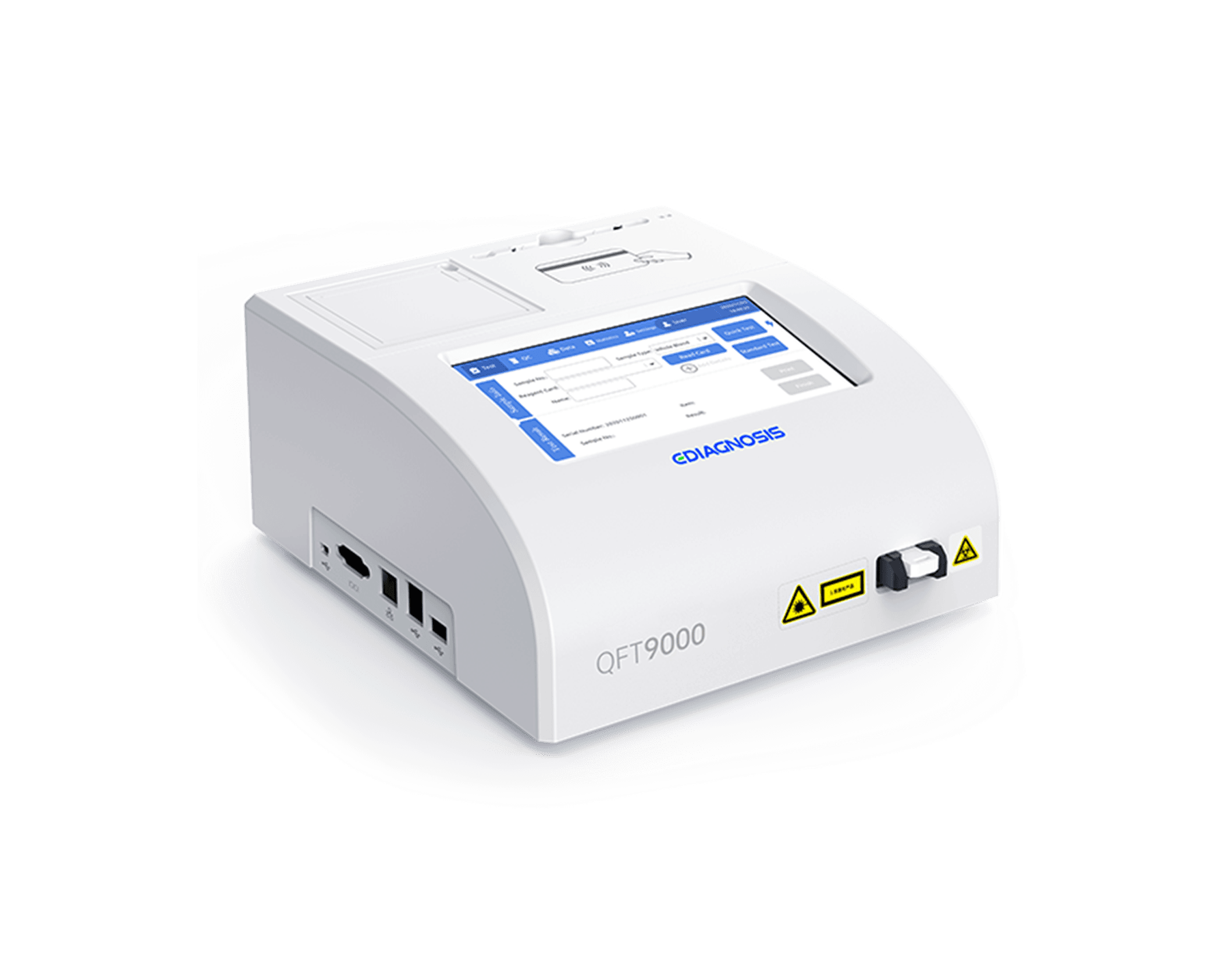

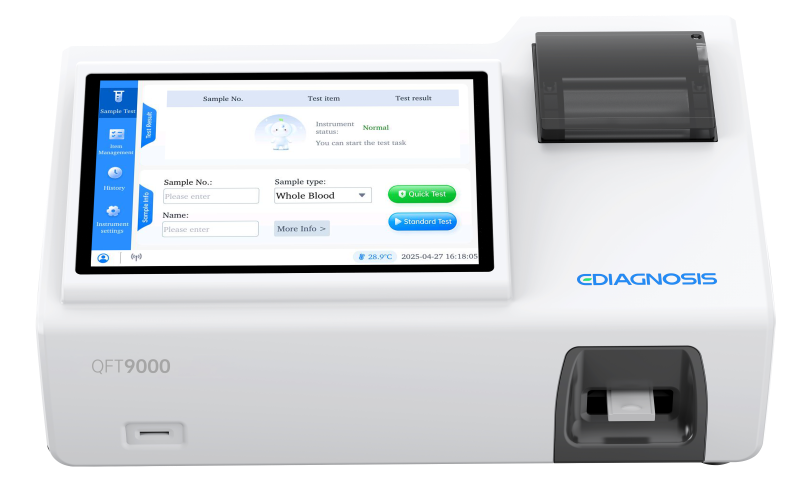

QFT9000

Fluorescence Immunity Analyzer

iPhone

Fast

  • Results in 2-8 mins

High Sensitivity

  • hs-cTnl LoD: 0.02ng/mL

Compact

  • Suitable for limited spaces

Easy to Use

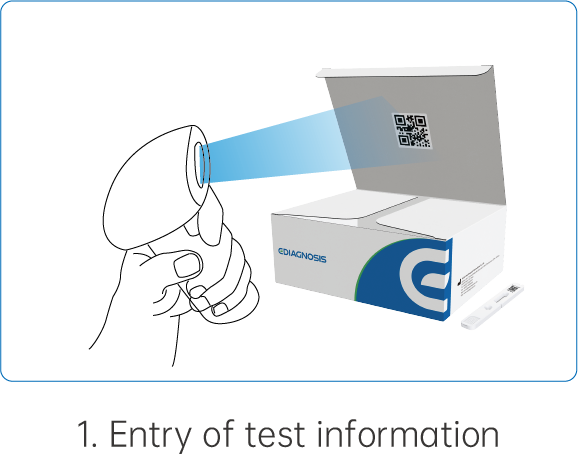

  • Test set up by RFID card

Instrument Specification

Parameters Content
Operation Environment Ambient temperature: 10°C~30°C
Relative humidity: 30%~85%
Atmospheric pressure: 86 kPa~106 kPa
Power Supply AC 100-240V, 50Hz/60Hz; 60VA
Test Principle FIA
Throughput ≥150T/h (with optional incubator)
Display 7-inch touch screen
Dimensions 263*240*122mm
Weight 3.5kg
Sample Type Whole blood, serum, plasma
Print Built-in thermal printer

Test Menu

Test Item Sample Type/Volume Reaction Time
(Incubation Time+ Reading Time)
Detection Range Storage
(months)
Qualification
Inflammation
PCT Serum, plasma, whole blood, 60μL 8 min+10s 0.05-150.00ng/mL 18 NMPA CE
IL-6 Serum, plasma, whole blood, 60μL 8 min+10s 2.50-4000.00pg/mL 18 NMPA CE
hs-CRP+ conventional CRP Serum, plasma, whole blood, 5μL 2 min+10s 0.50-200.00mg/L 18 NMPA CE
SAA Serum, plasma, whole blood, 5μL 2 min+10s 5.00-250.00mg/L 18 CE
SAA/CRP Combo Test Kit Serum, plasma, whole blood, 5μL 2 min+10s SAA:5.00mg/L-250.00mg/L
CRP:0.50mg/L-200.00mg/L
18 CE
PCT/CRP Combo Test Kit Serum, plasma, whole blood, 60μL 8 min+10s PCT:0.05ng/mL-100.00ng/mL
CRP:0.50mg/L-200.00mg/L
18 CE
HBP Serum, plasma, whole blood, 60μL 8 min+10s 6.00-300ng/mL 18 NMPA CE
Cardiac Marker
CK-MB Serum, plasma, whole blood, 60μL 8 min+10s 0.20-300.00ng/mL 18 NMPA CE
hs-cTnl Serum, plasma, whole blood, 60μL 8 min+10s 0.02-80.00ng/mL 18 NMPA CE
D-Dimer Plasma, whole blood, 60μL 8 min+10s 0.015-12.000 mg/L 18 NMPA CE
MYO Serum, plasma, whole blood, 60μL 8 min+10s 7.80-2000.00ng/mL 18 NMPA CE
BNP Plasma, whole blood, 60μL 8 min+10s 15.00-5000.00pg/mL 18 NMPA CE
NT-proBNP Serum, plasma, whole blood, 60μL 8 min+10s 30-35000pg/mL 18 NMPA CE
MPO Serum, plasma, whole blood, 60μL 8 min+10s 10-28000pmol/L 18 CE
Lp-PLA2 Serum, plasma, whole blood, 60μL 8 min+10s 7.50-1000.00ng/mL 18 CE
hs-cTnI/ CK-MB/ MYO Combo Serum, plasma, whole blood, 80μL 8 min+10s hs-cTnI:0.02 ng/mL-80.00 ng/mL
CK-MB:0.30 ng/mL-300.00 ng/mL
MYO:21.00 ng/mL-1000.00 ng/mL
18 CE
ST2 Serum, plasma, whole blood, 60μL 8 min+10s 5.00-200.00ng/mL 18 NMPA CE
Thyroid
T3 Serum, plasma, whole blood, 80μL 10 min+10s 0.40-6.00ng/mL 24 CE
T4 Serum, plasma, whole blood, 80μL 10 min+10s 1.00-25.00ug/dL 24 CE
fT3 Serum, plasma, whole blood, 80μL 10 min+10s 0.20-35.00pg/mL 24 CE
fT4 Serum, plasma, whole blood, 80μL 10min+10s 0.08-8.00ng/dL 24 CE
TSH Serum, plasma, whole blood, 80μL 10 min+10s 0.10-100.00mlU/L 24 CE
Hormones
AMH Serum, plasma, whole blood, 60μL 8 min+10s 0.1-23ng/mL 18 NMPA CE
β-HCG Serum, plasma, whole blood, 60μL 8 min+10s 2.0-200000.0mlU/mL 18 NMPA
COVID-19
SARS-CoV-2 Neutralizing Antibody Serum, plasma, whole blood, 60μL 15 min+10s 20-1500 BAU/mL 24 CE
Tumor Markers
PGⅠ/PGⅡ Combo Test Kit Plasma, whole blood, 60μL 8 min+10s PGⅠ:1.00 ng/mL-200.00 ng/mL
PGⅡ:0.50 ng/mL-100.00 ng/mL
18 CE
G17 Serum, plasma, whole blood, 60μL 8 min+10s 0.50 pmol/L-100.00 pmol/L 18 CE
AFP Serum, plasma, whole blood, 60μL 8 min+10s 0.5-350.0ng/mL 18 CE
CEA Serum, plasma, whole blood, 60μL 8 min+10s 0.5-200.0ng/mL 18 CE
β2-MG Serum, plasma, whole blood, 60μL 8 min+10s 0.3-20mg/L 18 CE
Diabetes
HbA1c whole blood, 60μL 8 min+10s (NGSP) 4-15% 18 CE
Cys C Serum, plasma, 60μL 8 min+10s 0.1-7.5mg/L 18 CE
Others
S100-β Serum, plasma, whole blood, 60μL 8 min+10s 0.05-10ng/mL 18 NMPA CE
Fer Serum, plasma, whole blood, 60μL 8 min+10s 1.5-1,000ng/mL 18 NMPA CE
Vitamin D Serum, plasma, 60μL 8 min+10s 8-70ng/mL 18 CE
